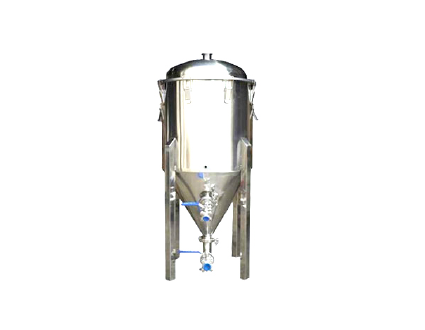

Fermenter is made of triple wall, inner tank made of 3mm thick stainless steel plate, insulated with 20 SWG SS sheet lid and flange will be made of 6mm SS plate and bolted with neoprene gasket.
The agitation will be carried out by SS shaft with propeller type SS blade fitted from the bottom. The shaft is fixed through stuffing box with gland packing to avoid leaking while running. Stirrer is connected with pulley and suitable motor, control panel will be provided. Entire Fermenter vessel will be mounted on MS channel structure.
The following provision will be made in the Fermenter lid and body: Steam inlet valve, Media inlet valve, pH reference collection valve, safety valve, pressure gauge, dial thermometer, viewing window with glass and the other side with illumination. Air inlet valve with perforated tube up to bottom of vessel and a drainage valve at the bottom of vessel.
Steam generator – Suitable to Fermenter capacity
Steam generator is double walled, inner tank made of 5mm thick MS plate and lid will be made of 8mm MS plate with neoprene gasket.
The following provision will be made at the lid: Steam releasing valve, steam cock, safety valve, pressure gauge and pressure control switch.
The following provision will be made in the body of the generator: water inlet, outlet, water level indicator and industrial heater. Inner tank is insulated with glass wool and covered with MS sheet and painted. Supported with MS channel structure.
With a capacity of 45 liter, max. pressure10kg/cm2 and regular working pressure 7kg/cm2. The compressor shall be suitable to work on 230/VAC single phase. The compressor is to be run by suitable motor provided with starter.
Made of SS pipe filled with silica gel provisions will be made of air inlet water outlet at the bottom. Approximate size will be 4”dia X 15” length.
Construction as dehumidifier but in the place of glass wool, cotton will be placed.
Construction same as primary air filters but in the place of glass wool, cotton will be placed.
|Model||Capacity of fermenter|
