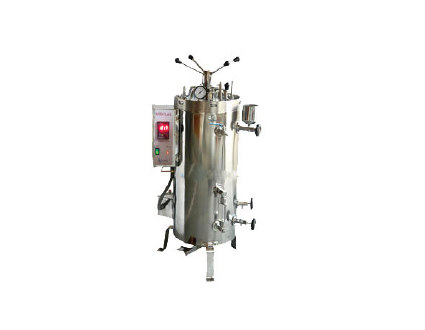

Electrically operated, standard vertical pattern boiler constructed of heavy stainless steel outer is of heavy gauge mild steel painted in grey hammer tone supplied with pedal lifting arrangement.
Lid is also made of heavy stainless steel and accurately machined to form a steam tight joined with stainless steel ring to also machined accurately for this purpose.
The instrument is supplied with Aluminum perforated work basket.Electrically heated by means of superior quality immersion heater having automatic ejection device. Pressure gauge, steam release cock and safety valve are fitted on top of the lid. Operating pressure 15lbs per sq. inch. The instrument is supplied with plug and cord ready for use on 220/230V.
| Model | Inner Sizes Dia. X Height | Vol. Ltr. | Rating |
| OAC-1 | 250X450mm | 22 | 1.5KW |
| OAC-2 | 300X500mm | 35 | 2.0KW |
| OAC-3 | 350X550mm | 52 | 3.0KW |
| OAC-4 | 450X600mm | 95 | 4.0KW |
| OAC-5 | 550X750mm | 178 | 6.0KW |
- Digital temperature controller (Instead of energy Regulator)
- Digital Timer
- Pressure cut off system
- Water level cut off device
- Water level glass indicator
